Images in generativepy


Martin McBride, 2022-01-07
Categories generativepy generativepy tutorial

The generativepy drawing module allows you to add image elements, using the Image class.

You can import any PNG image, and position it on the output image. You can also scale it.

If the source image has transparency, that will be respected when the image is added.

Adding an image

This sample code adds the image cat.png. It adds the same image three times, with different scale factors:

from generativepy.drawing import make_image, setup
from generativepy.color import Color
from generativepy.geometry import Image


def draw(ctx, pixel_width, pixel_height, frame_no, frame_count):
    setup(ctx, pixel_width, pixel_width, background=Color(0.8))

    Image(ctx).of_file_position('cat.png', (50, 50)).paint()
    Image(ctx).of_file_position('cat.png', (300, 50)).scale(0.5).paint()
    Image(ctx).of_file_position('cat.png', (50, 300)).scale(1.5).paint()


make_image("image.png", draw, 500, 600)

This code is available on github in tutorial/shapes/image.py.

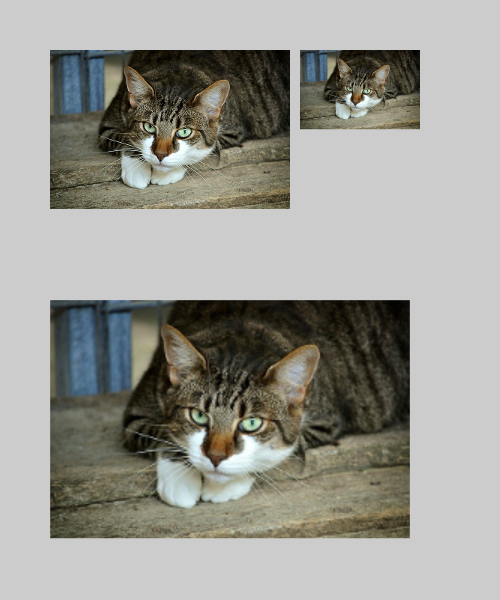

Here is the result:

This is the code to add the image at its normal size, with the top left corner of the image placed at (50, 50):

    Image(ctx).of_file_position('cat.png', (50, 50)).paint()

This code adds the image at half its normal size, with the top left corner of the image placed at (50, 50):

    Image(ctx).of_file_position('cat.png', (300, 50)).scale(0.5).paint()

As the example code shows, you can also scale the image up by using a scale factor > 1.

If you found this article useful, you might be interested in the book Computer Graphics in Python or other books by the same author.
