Bezier curves in generativepy

By Martin McBride, 2021-12-09
Tags: generativepy tutorial bezier curve
Categories: generativepy generativepy tutorial


This tutorial shows how to draw Bezier curves in generativepy, using the geometry module.

There are several ways to draw Bezier curves:

  • A Bezier object can be used to draw a stand-alone curve.
  • Bezier sections can be added to Polygon objects.
  • A Bezier object can be included into a complex path, see complex paths.

For simplicity, the shapes are drawn as outlines. See the fill and stroke tutorial for details of how to fill and stroke shapes with different styles, and the patterns tutorial to learn about special fills such as gradients.

Using Bezier objects

If you are not sure what Bezier curves are, we will describe them a bit more in the next section using generativepy to create some illustrations.

This code draws four simple Bezier curves:

from generativepy.drawing import make_image, setup
from generativepy.color import Color
from generativepy.geometry import Bezier, Polygon, Line, Circle

def draw(ctx, pixel_width, pixel_height, frame_no, frame_count):

    setup(ctx, pixel_width, pixel_height, background=Color(0.8))

    blue = Color('blue')
    thickness = 2

    Bezier(ctx).of_abcd((50, 150), (100, 50), (150, 50), (200, 150)).stroke(blue, thickness)
    Bezier(ctx).of_abcd((250, 150), (250, 50), (350, 50), (400, 150)).stroke(blue, thickness)
    Bezier(ctx).of_abcd((50, 350), (100, 250), (150, 450), (200, 350)).stroke(blue, thickness)
    Bezier(ctx).of_abcd((250, 350), (450, 250), (200, 250), (400, 350)).stroke(blue, thickness)

make_image("bezier-tutorial.png", draw, 500, 500)

This code is available on github in tutorial/shapes/bezier.py.

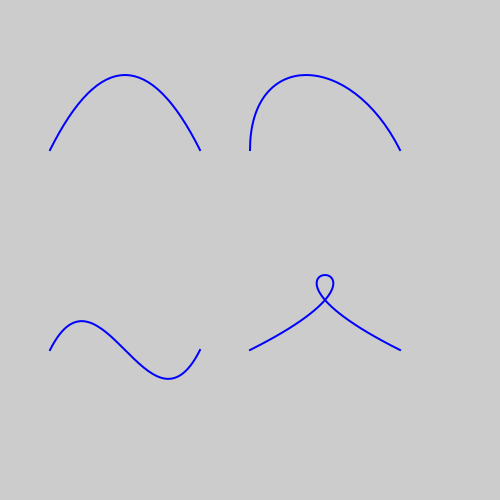

Here is the resulting image:

What are Bezier curves?

A Bezier curve is a versatile type of curve that is often used in vector graphics. It is useful because:

  • It can create various types of curves.
  • The controls are fairly intuitive.
  • Separate curves can be joined to create more complex curved shapes, and it is easy to join curves smoothly if required.

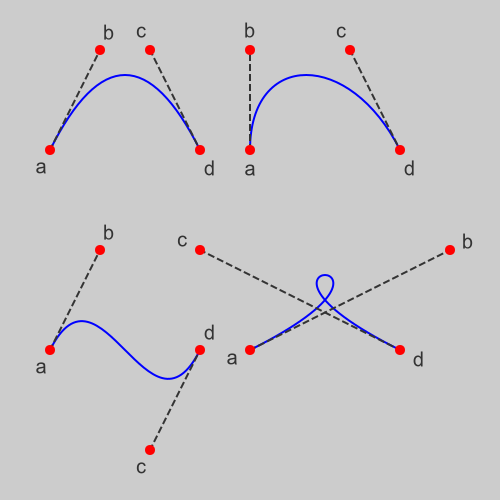

A Bezier curve is defined by 4 control points a, b, c, and d. Here are the curves we drew in the previous section, with the control points marked on each curve:

Points a and d are the endpoints of the curve. Point b controls the amount of curvature at the start of the curve. The curve is pulled towards point b. Point c controls the curvature at the and of the curve in a similar way. By moving points b and c we can create U-shapes, S-shapes and even loops.

Here are some other useful facts:

  • The entire curve is always contained within the convex hull of the points a, b, c, d.
  • The slope of the curve at a is equal to the gradient of the line ab.
  • Similarly, the slope of the curve at d is equal to the gradient of the line cd.
  • The length of the line ab controls the second derivative (roughly speaking, the "curvature") of the curve at a.
  • The length of the line cd controls the second derivative of the curve at d.

It is sometimes useful to create a smooth join between two curves. This allows us to create a complex curved shape that looks as if it was drawn using a single line. If the two curves are described by (a0, b0, c0, d0) and (a1, b1, c1, d1) then to create a smooth join, ensure that:

  • Point d0 is equal to point a1. This ensures that the two lines join.
  • The line c0d0 should have the same direction as the line a1b1. This ensures that the curves have the same slope where they join.
  • The line c0d0 should have the same length as the line a1b1. This ensures that the curves have the same slope where they join.

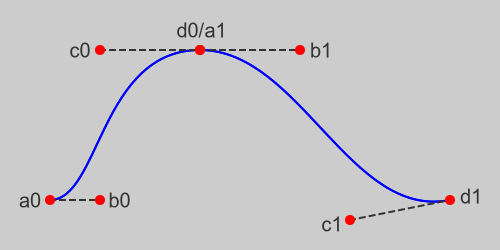

To create a smooth join, ensure that all 3 conditions are met. This diagram illustrates this:

The code to draw these diagrams is in bezier.py on GitHub (see above).

Adding a Bezier curve to a polygon

It is possible to add Bezier curves in place of one or more sides of a polygon:

def draw3(ctx, pixel_width, pixel_height, frame_no, frame_count):

    setup(ctx, pixel_width, pixel_height, background=Color(0.8))

    blue = Color('blue')
    red = Color('red')
    thickness = 4
    points = [(100, 250), (100, 50), (200, 100, 300, 200, 400, 50), (400, 250)]
    Polygon(ctx).of_points(points).fill(red).stroke(blue, thickness)

make_image("bezier-tutorial-polygon.png", draw3, 500, 300)

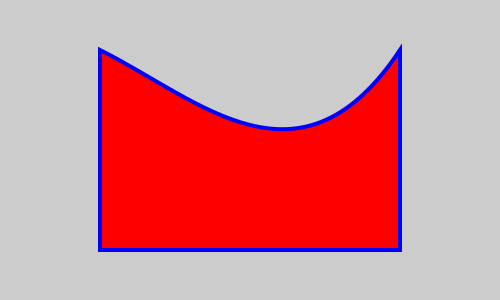

Here is the result:

In this case:

  • The first value in the points list is (100, 250) which sets the start point for the polygon.
  • The second value is (100, 50), so a straight line is drawn from the previous point (100, 250) to the new point (100, 50).
  • The third value is (200, 100, 300, 200, 400, 50). Since this is a sequence of 6 values rather than 2, it signifies a Bezier segment. The previous point (100, 50) is taken as parameter a of the Bezier. The 6 values in the new parameter represent points b, c and d.
