Text metrics in generativepy

By Martin McBride, 2022-01-04

Categories: generativepy generativepy tutorial


The previous article explains how to use text in generativepy. In this article, we will look at text metrics. Text metrics can be used to find the size and position of the text.

Text metric methods

Here is some code that draws text and measures its size.

from generativepy.drawing import make_image, setup
from generativepy.color import Color
from generativepy.geometry import Text, Rectangle


def draw(ctx, pixel_width, pixel_height, frame_no, frame_count):
    setup(ctx, pixel_width, pixel_width, background=Color(0.8))

    x, y = 50, 100
    text = Text(ctx).of("Text size", (x, y)).font("Times").size(100).fill(Color('blue'))
    width, height = text.get_size()
    Text(ctx).of('{} by {}'.format(width, height), (x+400, y))\
        .font("Times").size(40).fill(Color('black'))


    x, y = 50, 200
    text = Text(ctx).of("xyz", (x, y)).font("Times").size(100).fill(Color('blue'))
    width, height = text.get_size()
    Text(ctx).of('{} by {}'.format(width, height), (x+400, y))\
        .font("Times").size(40).fill(Color('black'))

    x, y = 50, 300
    text = Text(ctx).of("Text extents", (x, y)).font("Times").size(100).fill(Color('blue'))
    x_bearing, y_bearing, width, height, x_advance, y_advance = text.get_metrics()
    Rectangle(ctx).of_corner_size((x + x_bearing, y+y_bearing), width, height).stroke(Color('red'))

    x, y = 50, 400
    text = Text(ctx).of("xyz", (x, y)).font("Times").size(100).fill(Color('blue'))
    x_bearing, y_bearing, width, height, x_advance, y_advance = text.get_metrics()
    Rectangle(ctx).of_corner_size((x + x_bearing, y + y_bearing), width, height).stroke(Color('red'))

    x, y = 300, 400
    text = Text(ctx).of("'''", (x, y)).font("Times").size(100).fill(Color('blue'))
    x_bearing, y_bearing, width, height, x_advance, y_advance = text.get_metrics()
    Rectangle(ctx).of_corner_size((x + x_bearing, y + y_bearing), width, height).stroke(Color('red'))

make_image("text-metrics.png", draw, 700, 500)

This code is available on github in tutorial/shapes/text-metrics.py.

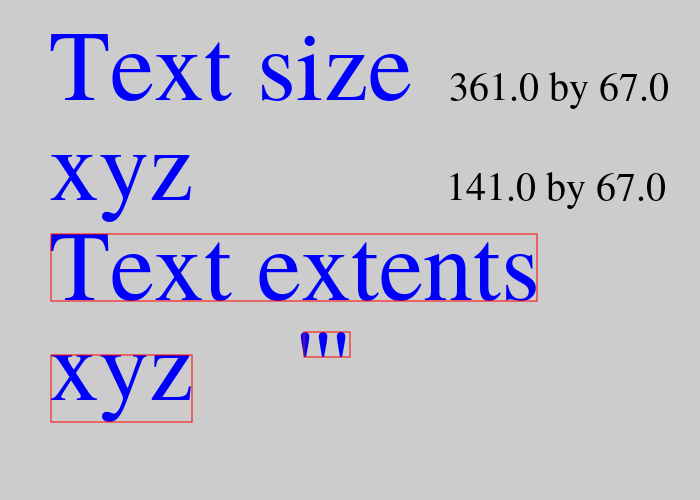

Here is the result:

Getting the text size

This code (from the full listing above) draws some text and finds its size:

    x, y = 50, 100
    text = Text(ctx).of("Text size", (x, y)).font("Times").size(100).fill(Color('blue'))
    width, height = text.get_size()
    Text(ctx).of('{} by {}'.format(width, height), (x+400, y))\
        .font("Times").size(40).fill(Color('black'))

We draw some text, containing the string "Text size", in the usual way. But we also save the Text object in the variable text.

Next we call text.get_size() to get the size of the text element. This returns a tuple (width, height) that we unpack into two variables.

These give the exact size of the text rectangle. We display this value as text next to the original text. The rectangle is 361 by 67 units. Since we are in default user space, that means that the text box is 361 by 67 pixels.

What exactly is the text box? It is the smallest rectangle that completely encloses the pixels marked by the text string. The width is from the left-hand side of the first 'T' to the right-hand side of the last 'e'. The height is from the baseline of the text up to the top of the 'T' (because that is the tallest character).

We do this again with the string xyz:

    x, y = 50, 200
    text = Text(ctx).of("xyz", (x, y)).font("Times").size(100).fill(Color('blue'))
    width, height = text.get_size()
    Text(ctx).of('{} by {}'.format(width, height), (x+400, y))\
        .font("Times").size(40).fill(Color('black'))

This time, the height of the text box is a little different. It goes from the bottom of the tail of the letter 'y' to the top of the 'xyz'.

An important point here is that get_size tells you the size of the text box but it doesn't tell you its position relative to the text itself. For example, the bottom of the text box might be at the baseline, or below the baseline, depending on whether the text contains any characters with descenders.

Getting the text metrics

We can solve this problem using get_metrics():

    x, y = 50, 300
    text = Text(ctx).of("Text extents", (x, y)).font("Times").size(100).fill(Color('blue'))
    x_bearing, y_bearing, width, height, x_advance, y_advance = text.get_metrics()
    Rectangle(ctx).of_corner_size((x + x_bearing, y + y_bearing), width, height).stroke(Color('red'))

This function returns 6 values:

  • x_bearing, y_bearing - the start position of the text box.
  • width, height - the size of the text box (exactly the same as for get_size).
  • x_advance, y_advance - the position of the next character.

The x_bearing gives the x-position of the text box relative to the start of the text. The y_bearing gives the y-position of the text box relative to the text baseline.

This means that if you place text at position (x, y), assuming it is horizontal alignment is left and the vertical alignment is baseline, the text box can be drawn with:

    Rectangle(ctx).of_corner_size((x + x_bearing, y + y_bearing), width, height).stroke(Color('red'))

If we wanted to draw a second text string after this one, we can position it by moving along by x_advance in the x-direction. This will position the string correctly, but it will not leave a space between the two strings. y_advance will usually be zero for Western fonts, and can be ignored.

This assumes a left-to-right writing system. In other systems, the advances work differently. For example, in a top-to-bottom writing system, the x_advance will be zero and the y_advance will indicate how far below to place the next string.

The image above shows the text boxes for the strings "Text extents", "xyz", and "'''". Notice that the box is positioned correctly in all cases.
